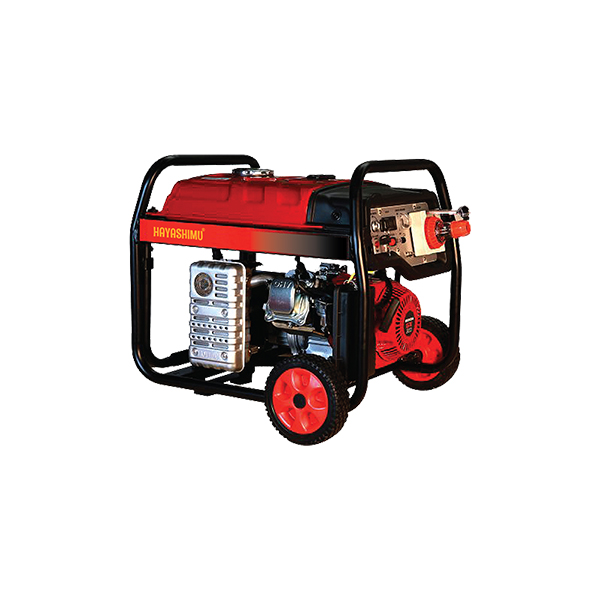

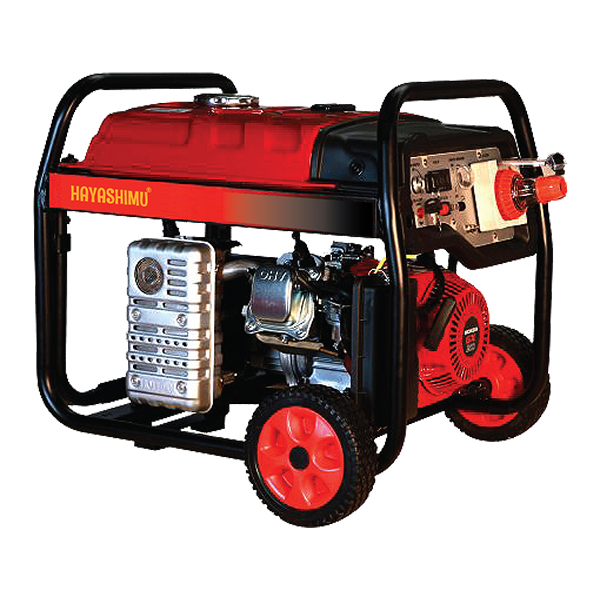

HAYASHIMU 3 KW Portable Generator

Description

HAYASHIMU 3 KW Portable Generator

Overview

• ATS, Remote & Push Starter: Easy and fast start with ATS, remote, and push starter options.
• Inverter Technology: Ensures clean power with Total Harmonic Distortion (THD) less than 3%.
• Stable Power: Provides stable power for sensitive appliances.
• High Starting Load Capacity: Capable of handling high starting loads.
• Ultra Quiet Operation: Operates quietly for minimal disturbance.
• Electronic Speed Control: Fuel costs can be saved with electronic speed control function.
• Powerful Engine: Features a more powerful 4-stroke OHV single-cylinder engine.
• Frame: Heavy-duty welded frame with a matte finish and rubber anti-vibration mountings.
• Battery: Maintenance-free lead-acid battery.

Technical Specification

General Data:

• Model: HPG-AD (Dual Fuel)
• Brand: HAYASHIMU
• Rated Power: 2.8 KVA / 3 KW
• Max. Power: 3 KVA / 3 KW
• Volts: 220V
• Frequency: 50HZ
• Engine RPM: 4850
• Power Factor: 1
• Max. Output (Ampere): 15.90A
• Starting System: Auto Start with ATS, Remote, Electric

Engine General Data:

• Engine Brand: HAYASHIMU
• Model: 164
• Fuel: LPG / Petrol / Octane
• Fuel Tank Capacity: 7L
• Cooling System: Air Cooled
• Displacement: 140cc
• Ignition System: Non-Contact
• Engine Oil Capacity: 0.4L

Alternator General Data:

• Brand: HAYASHIMU
• Alternator: Permanent Magnetism
• Th. Class: F
• Output Frequency Wrap: ±2%
• Output Voltage Wrap: ±2%

Dimension and Noise Level:

• Length: 500 mm
• Width: 300 mm
• Height: 450 mm
• Weight: 24 KG
• Sound From 7 m (dBA) 1/4 Load: 60

Fuel Consumption:

• Fuel Consumption (LPG):
  • 100% Load: 2 L/H
  • 75% Load: 1.2 L/H
  • 50% Load: 0.9 L/H
  • Continuous Duration of Runs: 6 H
• Fuel Consumption (Petrol/Octane):
  • 100% Load: 1.5 L/H
  • 75% Load: 1.1 L/H
  • 50% Load: 0.7 L/H
  • Continuous Duration of Runs: 7 H
